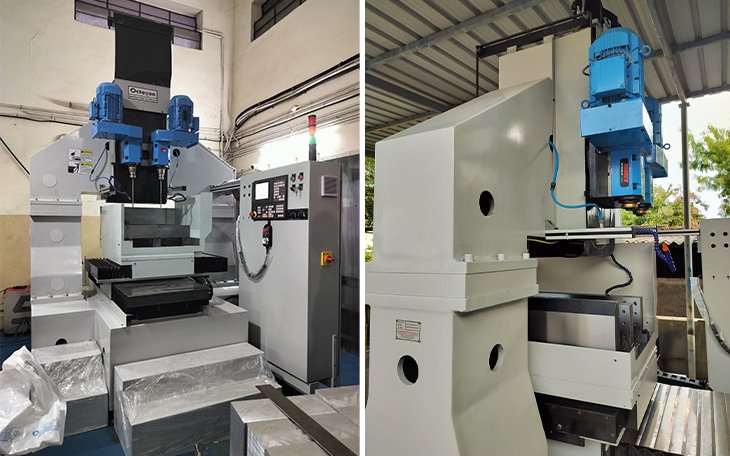

Twin Spindle Gantry Mill CNC Machine
A Twin Spindle Gantry Mill is a large CNC machining center that combines:
- Two spindles — two cutting heads that can machine parts simultaneously or independently, and
- A gantry-style frame — a bridge-like structure where the spindles (or tools) move over a stationary table or workpiece using a rigid overhead beam
This machine is designed for high productivity and automation in metalworking and heavy manufacturing environments.
Key Components:
1. Twin Spindles
- Two cutting heads (spindles) mounted on one machine.
- Each spindle can hold tooling (mills, drills, taps) and operate on the workpiece independently or at the same time.
- Allows two workpieces to be machined in parallel or perform multiple operations on one part without repositioning.
2. Gantry Frame
- The gantry consists of two vertical columns connected by a horizontal beam.
- Spindles move on this beam in X/Y/Z axes over the table/work area.
- This design gives high rigidity and large travel ranges — great for heavy, large, or long parts.
3. CNC Control System
- A computer controller drives all motion and cutting actions.
- Programs determine tool paths, speeds, feeds, and operations automatically.
